- K Type Thermocouple
- 24 AWG Wire
- Rated to 900°F(482°C)
- Fiberglass Insulation(Braided Glass)
- High Accuracy Special Limits of Error
- Fast Delivery
- Lengths up to 30 Ft Standard
- Contact IOThrifty for Other Lengths

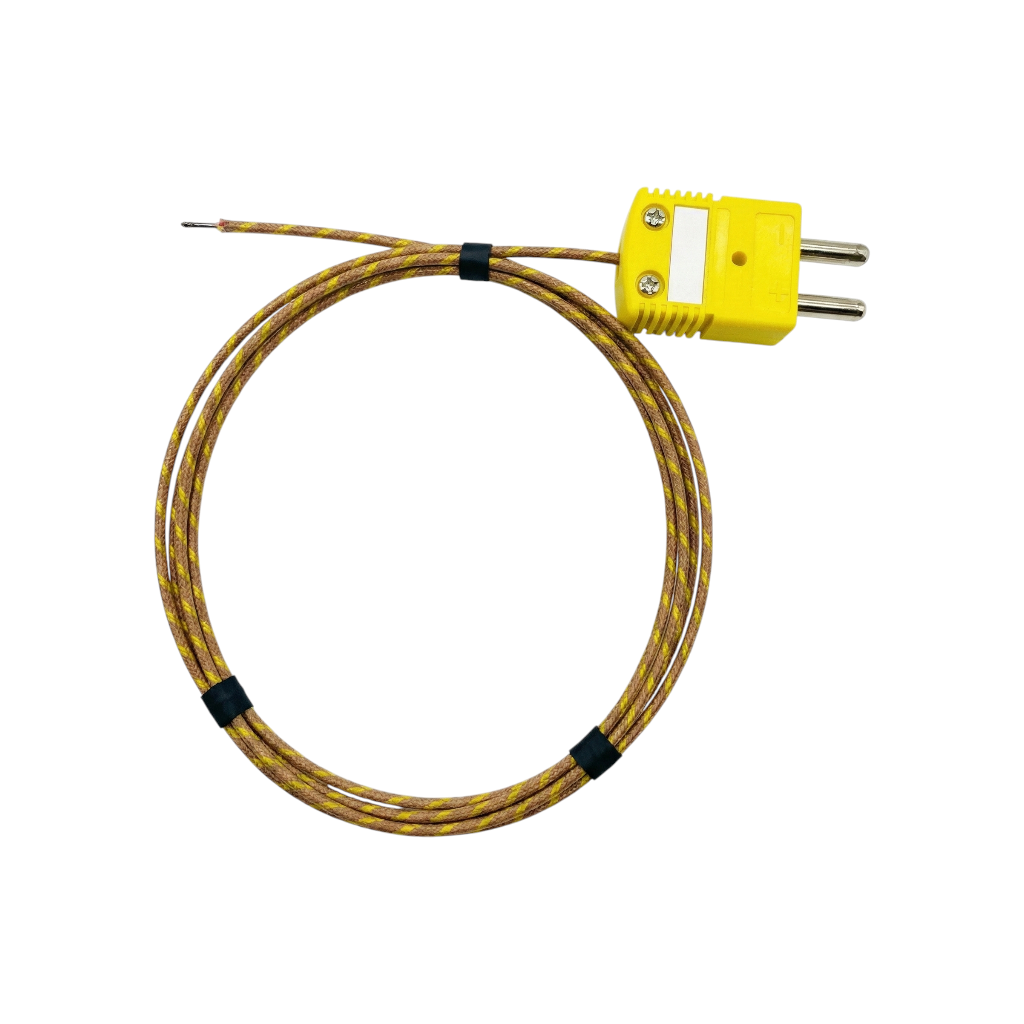

The WTC extended length thermocouples are available in standard lengths from 6 feet up to 30 feet. These K thermocouples are made from 24 AWG special limits of error wire. Each conductor is insulated in braided fiberglass with an additional coating of fiberglass insulation over both wires. We offer these thermocouples with stripped lead terminations or with miniature connector.
Lead Time Note: The quantity we show in stock is for the raw material. These items are made to order. Most orders are shipped in one or two days but large orders may take a few days longer. Please contact IOthrifty for more details.
| To Order the models below, click on the model number or scroll to the top of the page and choose the desired model from the drop down menu, then ADD TO CART |
| Stripped Leads Termination | |
WTC-GG-K-24SLE-36-SL |
3 ft. K thermocouple with stripped leads termination |
|
WTC-GG-K-24SLE-72-SL
|
6 ft. K thermocouple with stripped leads termination |
|
WTC-GG-K-24SLE-120-SL
|
10 ft. K thermocouple with stripped leads termination |
|
WTC-GG-K-24SLE-180-SL
|
15 ft. K thermocouple with stripped leads termination |
|
WTC-GG-K-24SLE-240-SL
|
20 ft. K thermocouple with stripped leads termination |
|
WTC-GG-K-24SLE-300-SL
|
25 ft. K thermocouple with stripped leads termination |
| WTC-GG-K-24SLE-360-SL |
30 ft. K thermocouple with stripped leads termination |
| Miniature Male Connector Termination | |
|
WTC-GG-K-24SLE-36-MP
|
3 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-72-MP
|
6 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-120-MP
|
10 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-180-MP
|
15 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-240-MP
|
20 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-300-MP
|
25 ft. K thermocouple with miniature male connector termination |
|
WTC-GG-K-24SLE-360-MP
|
30 ft. K thermocouple with miniature male connector termination |
Please contact IOThrifty for other lengths.
SPECIFICATIONS
Thermocouple Type: K (Chromel/Alumel)
Temperature Range: 32 to 900°F (0 to 482°C)
Accuracy: Special Limits of Error, ±1.1°C or ±0.4% of Reading (whichever is greater)
Wire Conductor Gauge: 24 AWG
Positive Leg: KP NiCr
Negative Leg: KN NiAl
Wire Insulation: Braided Fiberglass
Overall Nominal Size: .044” X .076”
Termination: Stripped leads or miniature male connector (model dependent)
