- Universal Input accepts Thermocouples, RTDs, Thermistors
- Programmable Input/Output Range
- 4-20mA(or 20-4mA) Output
- Loop Powered
- Easy USB Configuration via Free USB Software from Computer or Android Device
- Excellent Electrical Noise Resistance
- Field Calibratable
- Comes with an Accredited Calibration Certificate according to ILAC (International Laboratory Accreditation Cooperation)

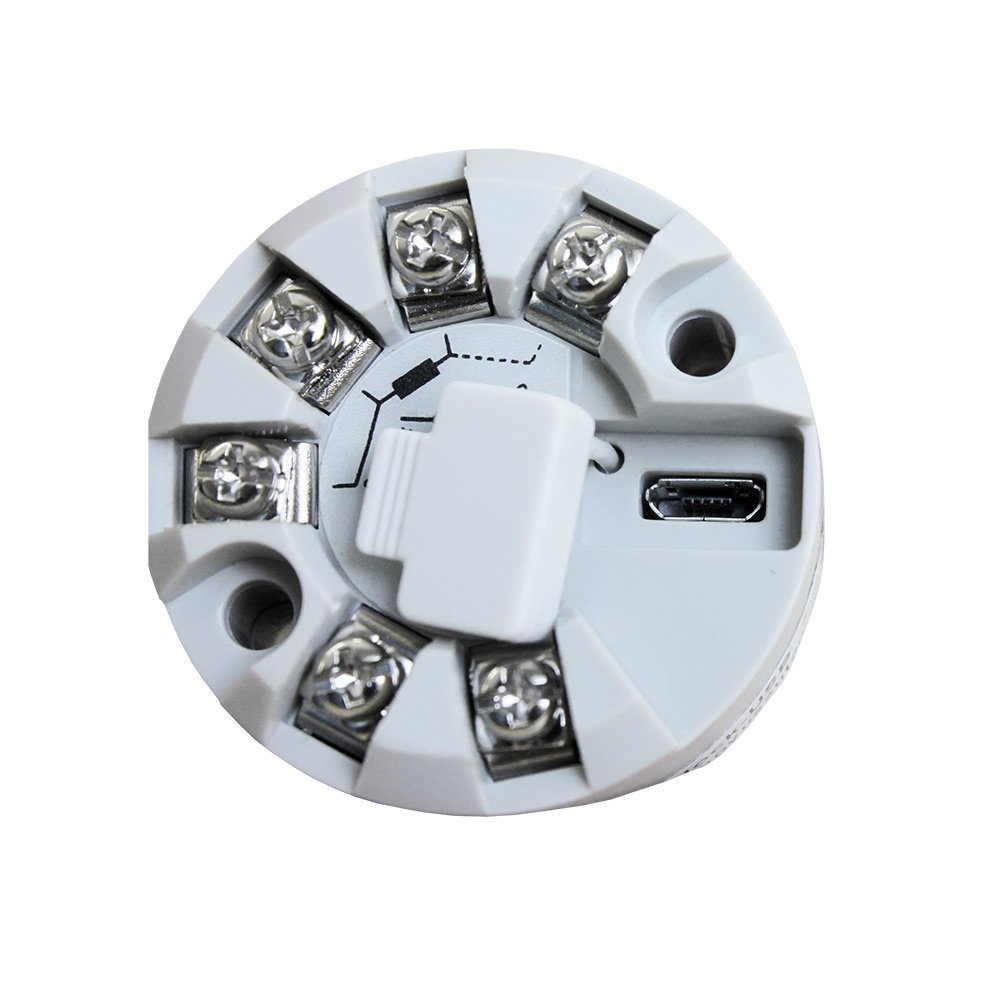

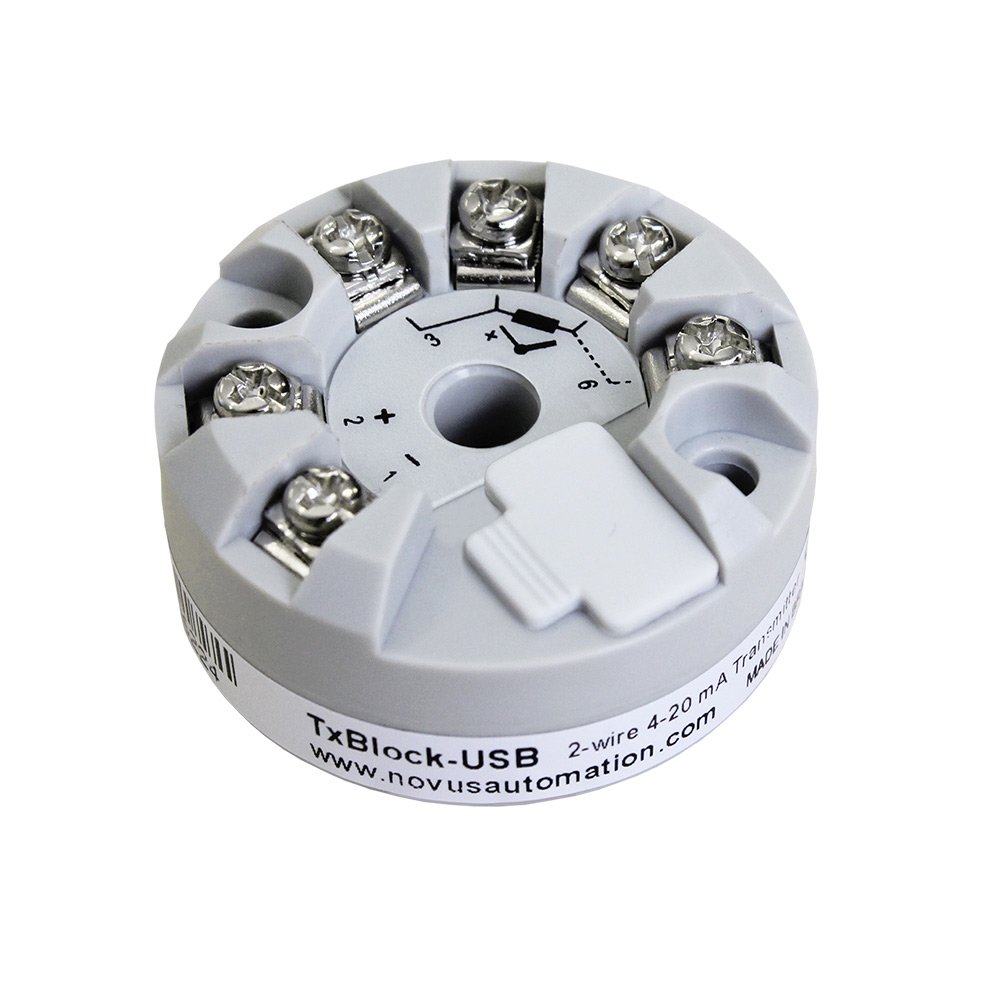

The TxBlock-USB is a low cost, high-accuracy USB programmable loop-powered head mounted temperature transmitter. The TxBlock-USB accepts most common temperature sensors including thermocouples, RTDs, thermistors and 0-50 mV signals. It provides a linearized 4-20 mA output and configurable measurement range.
USB Programmable
The TxBlock-USB is fully programmable through a USB connection. Free software is available via download for Windows computers or Android devices. With the software you can set the following parameters:
Sensor Type
Input and Output Range
Output Behavior if Sensor Fails
Zero Offset Correction

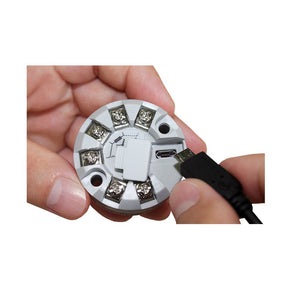

The TxBlock-USB can be connected to a computer using a standard USB cable with Micro B connector. To connect to an Android device an additional OTG style cable is also required.
Robust Noise Immunity
The TxBlock-USB is compliant with the leading standards of electromagnetic compatibility and is highly immune to electrical noise, making it well suited for industrial environments. The TxBlock-USB is supplied with an accredited calibration certificate according to ILAC (International Laboratory Accreditation Cooperation)
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
TxBlock-USB |
Programmable Head Mounted Temperature Transmitter |
| Downloads |
| User Manual |
| Dimensional Drawing |
|
Software Configurator TxConfig II for TxRail-USB, TxBlock-USB, TxMini, TxMini-M12, TxMini-DIN43650, NP600, NP620, NP640, TxIsoRail-HRT and TxIsoBlock-HRT |
SPECIFICATIONS
Input Types
Thermocouples: Types J, K, R, S, T, N, E and B Impedance > 1 MΩ
RTD
PT100: 3-wire or 4-wire, a= 0.00385
Pt1000: 3-wire, a= 0.00385
Thermistor: NTC R25°C: 10 kΩ ±1 %, B25/85 = 3435
Voltage: 0 to 50 mVdc. Impedance >> 1 MΩ
Sensor Ranges
0 to 50 mV
K T/C: -150 to 1370°C
J T/C: -100 to 760°C
R T/C: -50 to 1760°C
S T/C: -50 to 1760°C
T T/C: -160 to 400°C
N T/C: -270 to 1300 °C
E T/C: -90 to 720°C
B T/C: 500 to 1820°C
RTD: -200 to 650°C
Thermistor: -30 to 120°C
Sensor Accuracy (% of full range)
| Sensor | Typical Accuracy | Worst Case Accuracy |
| RTD (-150 to 400°C) | 0.10% | 0.12% |
| RTD (-200 to 650°C) | 0.13% | 0.19% |
| Thermocouples* & mV | 0.10% | 0.15 |
| Thermistor | 0.3°C |
0.7°C |
* add ± 1°C for cold junction
Output: 4-20 mA or 20-4 mA current, 2-wired;
Power supply: 10 to 35 Vdc
Operating Temperature: -40 to 85°C
Humidity: 0 to 90 % RH
