NTC-MOD Thermistor Temperature Sensors

• Available with Rubber or Stainless Steel Capsule/Sheath
• 10KΩ β25/85=3435K  NTC Thermistor
• Three Meter Cable Length
• Water Proof

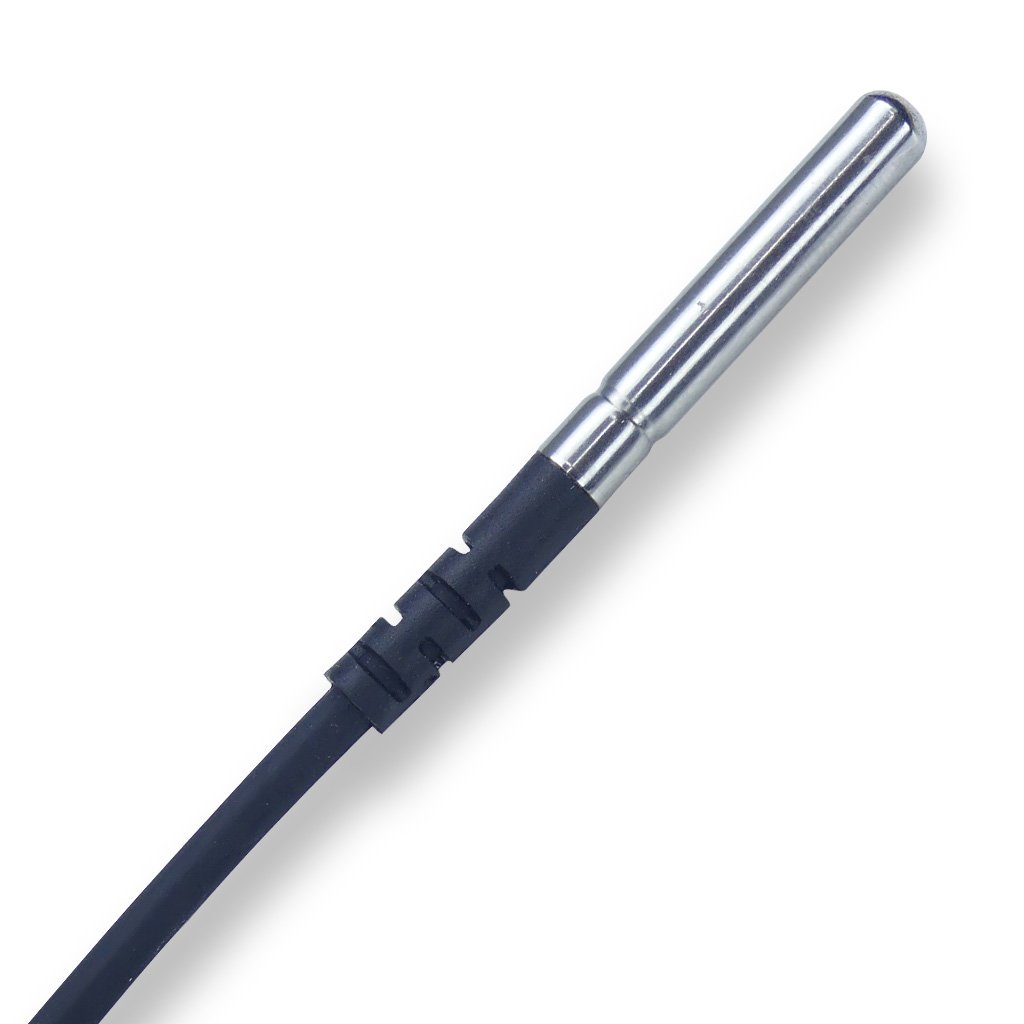

The NTC-MOD temperature sensors are thermistor based thermistors.  Thermistors are low cost high accuracy temperature sensors whose resistance change as the temperature changes.  NTC (Negative Temperature Coefficient) thermistors decrease in resistance with increasing temperature and vice a versa. We offer two versions of the NTC-MOD.  The NTC-MOD1-TPE-3M includes a thermistor element encapsulated in TPE (Thermoplastic Elastomer) rubber.  The NTC-MOD2-304SS-3M includes a thermistor encapsulated in a stainless steel sheath. Both sensors feature an IP68 water proof rating and 3 meter cable.

To Order the model below scroll to the top of the page then  click on ADD TO CART button

PART NUMBERS	DESCRIPTION
NTC-MOD1-TPE-3M	NTC Thermistor Temperature Sensor with TPE Rubber Capsule
NTC-MOD2-304SS-3M	NTC Thermistor Temperature Sensor with 304SS Sheath



Downloads

NTC-MOD Thermistor Temperature Sensor Data Sheet



SPECIFICATIONS
Sensor: NTC thermistor, R25= 10kΩ, 1%, β25/85=3435K 1%
Accuracy: < 1% (0.27°C) @ 25°C
Temperature/Resistance: See data sheet
Cable: Two Tinned Copper Wires; 2 x 0.22 mm²; TPE insulation; tinned stripped leads
Electrical insulation: > 20 MΩ @ 500 Vdc
Length: 3 meters

Capsule/Sheath  Material
  NTC-MOD1: Overmoulded TPE rubber
  NTC-MOD2: 304 stainless steel

Operating Temperature
  NTC-MOD1: -50 to +110°C
  NTC-MOD2: -30 to +105°C

Response time (to reach 63 % of the applied temperature step)
  NTC-MOD1: 8 seconds
  NTC-MOD2: 9 seconds

IP Rating: IP68
