- FREE DELIVERY!
- 4 x Thermocouple Inputs plus 2 x RTD Inputs
- Display and Log All 6 Channels Simultaneously or Individually
- Data Logging to SD Card, or PC via USB Interface
- Powered by Built-In Battery, USB or Mains Adapter (included)
- Built-In Stand
- Free Software Available
- Modbus Interface for Integration into Third-Party Software
- Alarm Indication for Each Channel
- CE and RoHS 2 Compliant
The EXCELOG-6 is a 6 channel handheld temperature data logger with intuitive touch screen technology. It accepts four channels of thermocouples plus two channels of PT100 RTD. This thermocouple and RTD data logger comes preprogrammed with English, Spanish, German, Italian and Chinese languages. EXCELOG-6 is fully configurable, no additional hardware is required for configuration. Each channel is configurable separately for input type, maths, alarms and display options. The firmware updates via USB.

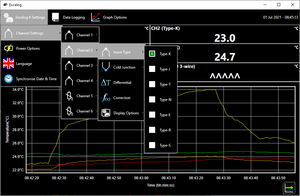

Data may be downloaded to directly to an SD card plugged into the EXCELOG-6 or to a computer via a USB cable using the free downloadable EXCELOG software. The software features include:
- Temperature display of all 6 channels
- Data logging of live temperature data direct to PC
- File format: Comma-separated text file (compatible with Excel)
- Scrolling multi-channel temperature chart
- Configuration of Excelog 6 settings
| To Order the model below scroll to the top of the page then click on ADD TO CART button |
| PART NUMBERS | DESCRIPTION |
DL-IR-EXCELOG-6 |
6 Channel Handheld Data Logger w/Touch Screen |
|
EL6-CALCERT |
Excelog-6 Data Logger Calibration Certificate(must be ordered with data logger, please note the certificate lead time) |
| Downloads |
|
EXCELOG-6 User Manual |
| EXCELOG-6 Spec Sheet |
| EXCELOG Software |
| EXCELOG Modbus Instructions |
| Videos |
|
|
|
|
SPECIFICATIONS
INPUTS
4 x thermocouple inputs (any of the below types) for use with mini thermocouples, plus 2 x RTD inputs, spring clamps, for 2-wire or 3-wire RTDs, 28 to 16 AWG
| INPUT TYPE | TEMP RANGE | ACCURACY* |
| Thermocouples | ||
| Type J | -200C to 1200°C | +/-0.1% or 0.8°C |
| Type K | -200C to 1372°C | +/-0.1% or 0.°8C |
| Type T | -200C to 400°C | +/-0.1% or 0.8°C |
| Type R | 0C to 1768°C | +/-0.1% or 0.8°C |
| Type S | 0C to 1768°C | +/-0.1% or 0.8°C |
| Type N | 0C to 1300°C | +/-0.1% or 0.8°C |
| Type E | -200C to 1000°C | +/-0.1% or 0.8°C |
| RTDs | ||
| Pt100, Pt200, Pt500, Pt1000 | -200C to 850C | +/-1.0% or 1.0°C |
* Accuracy of Excelog only (whichever is greater)
TEMPERATURE RESOLUTION:
0.1° for temperatures below 1000 (°C or °F)
1° for temperatures above 1000 (°C or °F)
DISPLAY: 2.83" (72mm) resistive touch TFT, 320 x 240 pixels, backlit
CONFIGURABLE PARAMETERS: Temperature units, alarms, signal processing, date and time, data logging, power options, graph channels
TEMPERATURE UNITS: F or C
ALARM CONFIGURATION: 12 x visual alarms (2 per channel) w/adjustable level, individually configurable as HI or LO
SIGNAL PROCESSING: Avg, mins, max, standard deviation, temperature difference between 2 channels
DISPLAY RESPONSE TIME: 1 s
OPERATING TEMPERATURE: 0-to 50°C
POWER SUPPLY: Built-in rechargeable Li-ion battery, or USB or 5V DC mains adapter (included)
BATTERY LIFE: 32 hours while logging w/full display brightness. Up to 96 hours while logging in power saving mode
CHARGE TIME: 6 hours
WEIGHT: 200 g without thermocouples
DIMENSIONS: 136(w) x 71(h) x 32(d)mm, without thermocouples
DATA LOGGING
Data logging Interval, 1 to 86,400 seconds (1 day)
Max. SD card capacity, 32 GB SD or SDHC (4GB SD card included - approx 1 year of data at max sample rate)
Variables logged, measured temperature, cold junction temperature, alarm events
File format, .csv (can be exported to Excel)
Configurable parameters, sample period, number of samples, scheduled start date/time (or manual start/stop)
