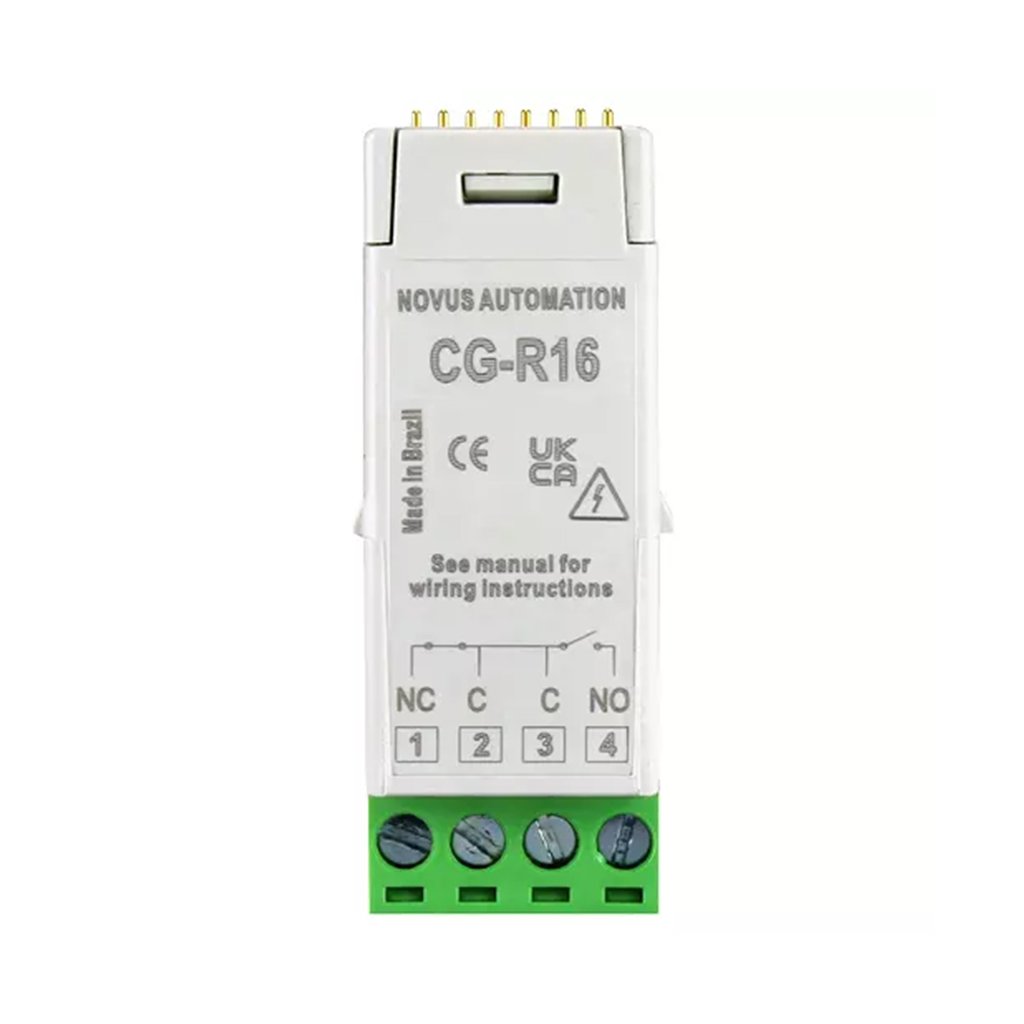

CG-R16 16A Relay Output ClickNGo Module for the N20K48 Modular PID Controller - One 16A Relay

• One SPDT 16A Relay
• Output Configurable as Control Output, Alarm Output, Timer Output or Modbus Coil
• Plug and Play Configuration

The CG-R16 ClickNGo module is a relay output expansion module for the N20K48  modular controller. The CG-R16 adds a single 16A SPDT relay to the NK2048 controller.  Used in conjunction with the controller dock, once inserted, it is automatically recognized by the controller. Its configuration parameters are referenced to the dock slot into which the module has been inserted. The CG-2R5 module can be configured through the controller's keyboard, QuickTune software or QuickTune Mobile software.

PART NUMBERS	DESCRIPTION
CG-R16	16A Relay output ClickNGo module for the N20K48 Modular PID controller – One 16A relay output
