Climate Air+: Advanced Temperature and Humidity Monitoring System

• High Accuracy: ±0.2°C | ±1.5% RH
• Communication Range: Up to 3 km in open field
• Internal Memory: Locally stored records (up to 15,000 with RHT Air+ and 480,000 with AirGate Air+) to prevent data loss
• Regulatory Compliance: Complies with FDA 21 CFR Part 11
• Data Security: Protection through proprietary encryption
• Durability: Certified by Anatel, FCC, RoHS, and CE
• Scalable Network: Supports up to 32 RHT Air+ sensors with a single AirGate Air+
• Versatile Power Supply: 8 to 30 VDC

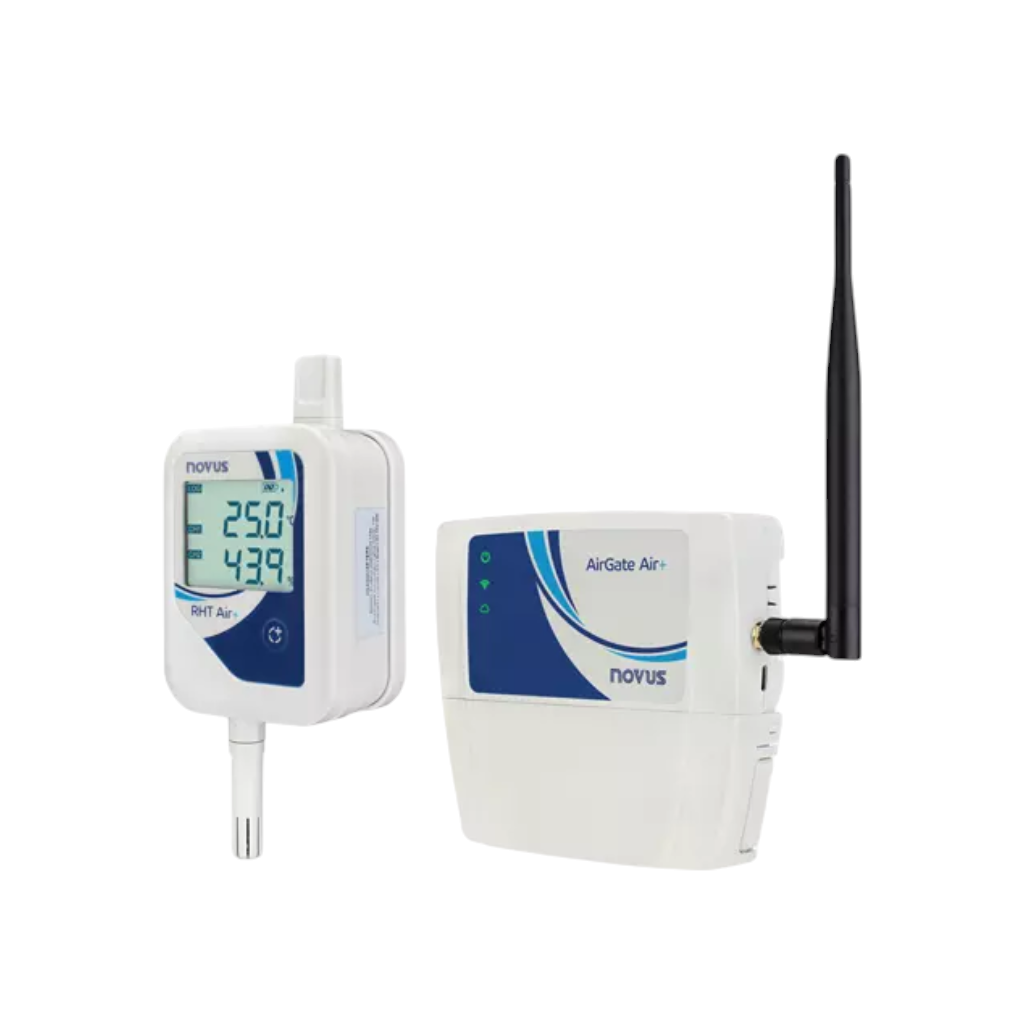

The Climate Air+ Solution is designed for high-precision and high-durability monitoring in critical environments like pharmaceutical warehouses, industrial facilities, and data centers. It leverages LoRa technology for robust long-range communication and includes RHT Air+ and AirGate Air+ devices for a scalable, secure monitoring system.

The RHT Air+ is a wireless sensor engineered for continuous temperature and humidity measurements, featuring a 2-channel display and a battery life of up to 2 years. Even if network communication is interrupted, its internal memory can store up to 15,000 records, preserving data integrity and supporting compliance requirements.

The AirGate Air+ acts as the gateway, enabling connection for up to 32 RHT Air+ sensors and offering a memory buffer for as many as 480,000 records. Supporting open protocols like MQTT, NTP, and Modbus-TCP, this device integrates seamlessly with existing systems to ensure continuous monitoring and efficient data management.

Benefits of the Climate Air+ Solution
Implementing this system ensures uninterrupted and reliable monitoring, crucial for maintaining the integrity and compliance of sensitive environments. With LoRa technology overcoming obstacles in challenging physical conditions and advanced encryption securing transmitted data, the Climate Air+ Solution addresses the most demanding operational requirements.

This integrated approach simplifies installation and reduces operational costs while maximizing data protection. By delivering accurate, real-time insights, the Climate Air+ Solution empowers organizations to optimize environmental control, meet strict regulatory standards, and minimize risks associated with temperature and humidity fluctuations.

.

RHT Air+ SPECIFICATIONS

Temperature Measurement Range: -10 to 70 °C (14 to 158 °F)
Temperature Resolution: 0.1 °C
Temperature Accuracy: ±0.2 °C

Relative Humidity Measurement Range: 0 to 100 % RH
Relative Humidity Resolution: 0.1 % RH
Relative Humidity Accuracy: ±1.5 % RH

Memory Type: Circular
Memory Capacity: 15,000 logs (2 quantities); 50 days with a 5-minute interval
Recording Interval: 2 to 720 minutes

Communication Interfaces
USB-C: For configuration, download, and diagnostics
LoRa (Models 915 MHz):
  • Frequency: 915.4–927.4 MHz
  • Bandwidth: 500 kHz
  • Spreading Factor: 7–11
  • Transmission Power: 20 dBm
  • Reception Sensitivity: -136 dBm
  • Radio Coverage: Up to 3 km with clear line of sight

Power Supply
Non-rechargeable Batteries: Up to 2 years (with 10-minute publication, SF10, and 14 dBm)
USB-C: Recommended 5 V ~ 1 A power supply (cable length ≤ 1.5 m)

Display: 2 lines, 4 digits
Protection Index: IP65 (enclosure), IP40 (sensor)

Environment:
  • Operating Temperature: -10 to 70 °C (14 to 158 °F)
  • Storage Temperature: -20 to 70 °C (-4 to 158 °F)
  • Humidity: 5 to 95 % RH (Non-condensed)

Dimensions: 70 mm x 175 mm x 45 mm
Housing: Polycarbonate (V2 flame retardant)
Software: NXperience (via USB), NXperience Trust (FDA 21 CFR part 11)
Certifications: Anatel: 07860-24-07089; FCC (Contains LoRa module, FCC ID: 2ADHKR34M); ISED (Contains LoRa module, IC: 20266-R34M[1])

AirGate Air+ SPECIFICATIONS

Memory Type: Circular
Memory Capacity: 480,000 logs (2 quantities)
Recording Interval: 2 to 720 minutes

Communication Interfaces
USB-C: For configuration, download, and diagnostics
LoRa (Models 915, 868, 865 MHz):
  • Frequency: 915.4–927.4 MHz / 865.15–869.85 MHz / 865.15–866.86 MHz
  • Bandwidth: 500 kHz (915), 250 kHz (868 & 865)
  • Spreading Factor: 7–11 or 7–12 (model-dependent)
  • Transmission Power: 14 to 20 dBm (model-dependent)
  • Reception Sensitivity: -136 dBm
  • Radio Coverage: Up to 3 km with clear line of sight
Ethernet: 10/100 Mb/s, IEEE 802.3u
Wi-Fi: IEEE 802.11 b/g/n 2.4 GHz (Supports WPA/WPA2 TKIP/AES/TKIP and AES)

Protocols: SMTP, NTP, MQTT, Modbus-TCP
Power Supply: External power supply (8–30 Vdc)
Protection Index: IP20

Environment:
  • Operating Temperature: -10 to 60 °C (14 to 140 °F)
  • Storage Temperature: -20 to 70 °C (-4 to 158 °F)
  • Humidity: 5 to 95 % RH (Non-condensed)

Dimensions: 220 mm x 180 mm x 38 mm
Housing: ABS + PC
Software: NXperience (via USB), NXperience Trust (FDA 21 CFR part 11)

Certifications:
  • Anatel: 07859-24-07089
  • FCC: Contains Wi-Fi module (FCC ID: 2AC7Z-ESPWROOM32D) and LoRa module (FCC ID: 2ADHKR34M)
  • ISED: Contains Wi-Fi module (IC: 21098-ESPWROOM32D[1]) and LoRa module (IC: 20266-R34M)
