K (Chromel/Alumel) Type Thermocouple
- 12 Inch (304.8mm) Long Probe with 1/8 inch (3 mm) Diameter
- 72 Inch (1.830 mm) Lead Wire Terminating in Miniature Male Thermocouple Connector or Stripped Leads
- Temperature Rating : 1,650°F (900°C)
- Ungrounded Junction
The TJIN series of thermocouple probes can measure high temperatures of up to 900°C and are currently available as K type thermocouple calibration. They feature an Inconel sheath and ungrounded junction. In addition, they have transition joint, which connects the probe to the lead wires, and 72 inches of lead wire which terminates with either a miniature male plug-type thermocouple connector or stripped leads.
This probe is well-suited for industrial environments. The ungrounded junction of the probe isolates the thermocouple element inside the probe from the outer sheath wall of the probe making it resistant to ground loops often found in industrial environments. The transition joint strain relief makes for a highly mechanically sound connection between the wire and the probe.

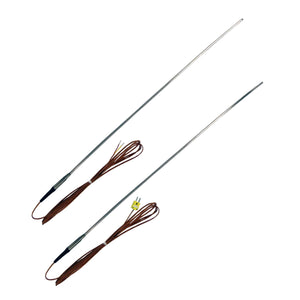

Two termination options are available - stripped leads, or a miniature male thermocouple connector for quick connection to many thermocouple instruments.
.
| To Order, click on the model number link or scroll to the top of the page and ADD TO CART |
| Model No. | Description |

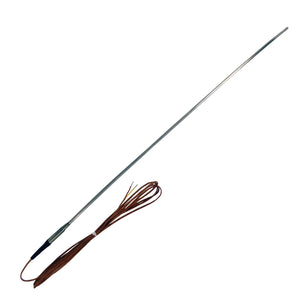

| TJIN-K-6-18U-72-SL | 1/8" diameter K type thermocouple probe with 12 inch Inconel sheath and 72 inch lead wire terminating in stripped leads. |

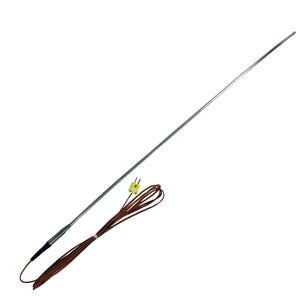

| TJIN-K-6-18U-72-M | 1/8" diameter K type thermocouple probe with 12 inch Inconel sheath and 72 inch lead wire terminating in miniature male connector. |
SPECIFICATIONS
Thermocouple Type: K (Chromel/Alumel)
Temperature Rating: 900°C (1,650°F)
Probe Sheath Material: Inconel
Probe Diameter: 3mm (1/8 inch)
Probe Length: 304.8mm (12 inches)
Thermocouple Junction: Ungrounded (thermocouple element is insulated from sheath wall)
Termination Type: Stripped leads or miniature male (model dependent)
Lead Wire Length: (Includes transition joint): 1,830mm (72 inches)
Lead Wire Insulation: PFA
