Answer
Feb 28, 2025 - 01:20 PM

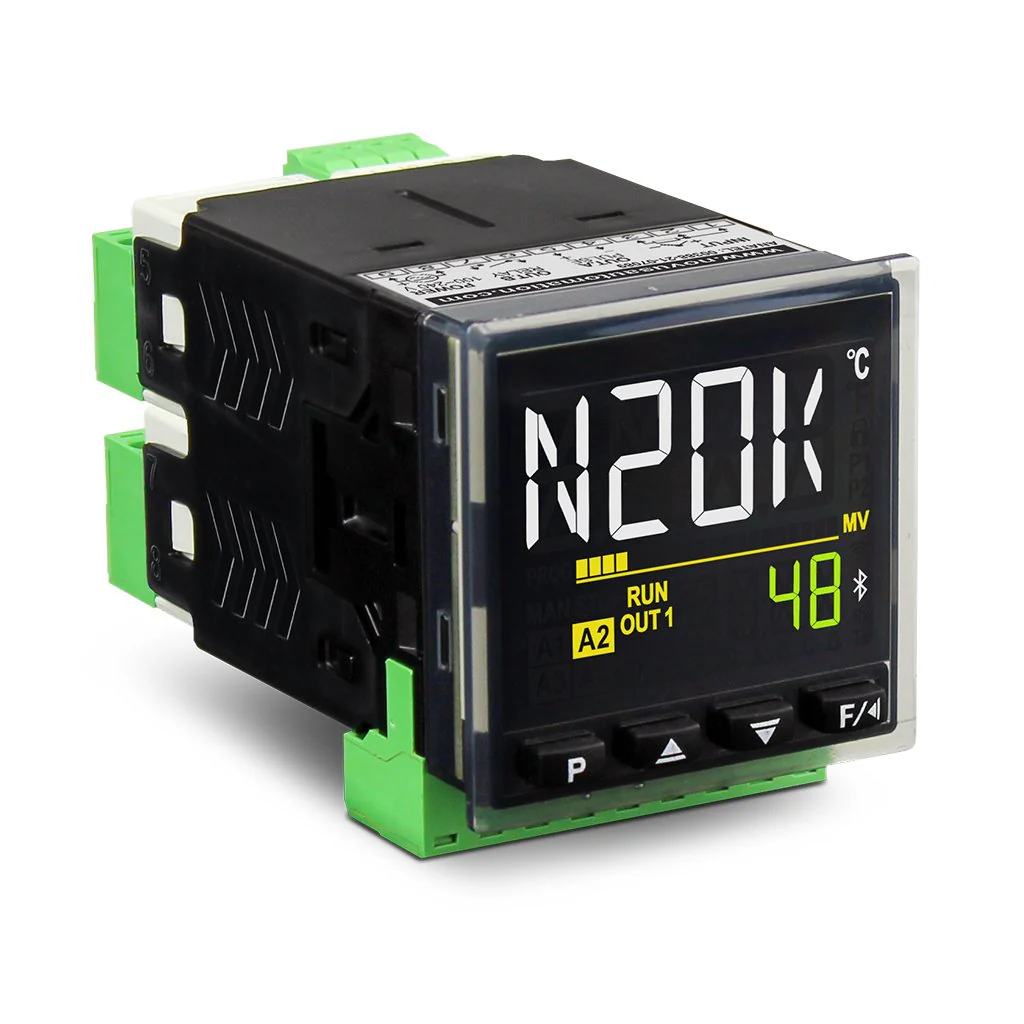

The ATR244-12ABC only has one analog output but there is a version of this same controller with two analog outputs. It is the ATR244-23BC-T which also has two analog inputs. The two outputs can be set for one cooling and one heating. However, even though you asked about the ATR244-12ABC, it looks like you are on the N20K48 page which is a different controller. That controller does not have any native analog outputs but you can add up to three analog outputs by adding the analog output module,CG-AO , however, the analog outputs can only be set as follows:
Analog output acts as a control output 1 Analog output acts as a process 1 variable retransmission Analog output acts as a Setpoint retransmission
You could not have one analog output for heating and one cooling.
If you need a controller with two analog outputs where one is used for heating and one for cooling, the ATR244-23BC-T is the best choice in 1/32DIN controller. The ATR444 is a 1/8th DIN controller which has two analog outputs which can be set for both heating and cooling at the same time.
