Answer
Sep 25, 2023 - 01:38 PM
The dimensions for the controllers are in the user manual which can be downloaded from the product page on IOthrifty.com but here they are..

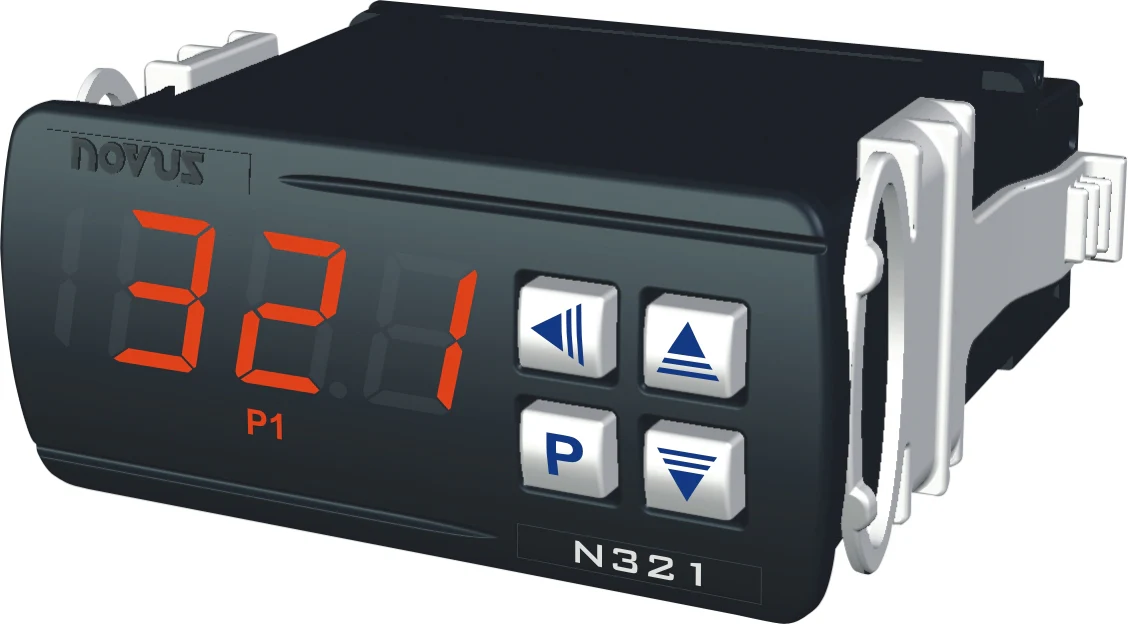

N321 Dimensions
Width x Height x Depth: 74 x 32 x 75 mm
Panel cut-out: 70 x 29 mm
N322 and N323 Dimensions
Width x Height x Depth: 75 x 33 x 75 mm
Panel cut-out: 70 x 29 mm
The N320 family controllers that accept a thermistor input include a thermistor sensor(thermocouple and PT100 input models don't include the sensor). The thermistor which is included is the NTC-MOD2-304SS-3M which can be seen on this page on IOthrifty.com https://www.iothrifty.com/collections...

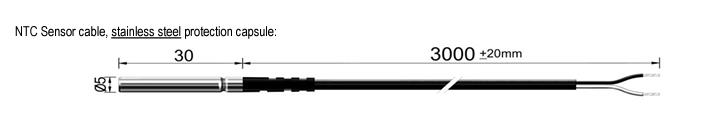

Here is a dimensional drawing from the thermistor data sheet.
